OOYA MODEL RE 1225H RADIAL ARM DRILL

SERIAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .N74L3269
SPINDLE TAPER. . . . . . . . . . . . . . . . . . . . . . .#5 MT
COLUMN DIAMETER. . . . . . . . . . . . . . . . . .12-1/2″
SPINDLE TRAVEL. . . . . . . . . . . . . . . . . . . . .12″
DRILLING CAPACITY – STEEL . . . . . . . .2″
                                                      - CAST IRON. . . .2-1/4″
DISTANCE SPINDLE TO COLUMN. . . . .12″ TO 49.4″
VERTICAL TRAVEL OF ARM. . . . . . . . . .25.6″
DISTANCE SPINDLE TO BASE. . . . . . . . .13″ MINIMUM/52″ MAXIMUM
SPINDLE SPEEDS (12) . . . . . . . . . . . . . . . . .38 TO 1,985 RPM
AREA OF BASE . . . . . . . . . . . . . . . . . . . . . . . .52″ X 30″
MAIN SPINDLE MOTOR. . . . . . . . . . . . . . .5 HP
ELECTRICS . . . . . . . . . . . . . . . . . . . . . . . . . . .575/60/3 VOLT
DIMENSIONS. . . . . . . . . . . . . . . . . . . . . . . . . .96″ F-B X 48″ W X 86″ H
APPROX. WEIGHT . . . . . . . . . . . . . . . . . . . . .6,550 LBS
C/W:
- BOX TABLE – 17-3/4″ X 25-1/2″ X 15-3/4″;
- POWER ELEVATION;
- POWER CLAMPING TO COLUMN;
- POWER CLAMPING TO ARM;
- COOLANT PUMP;

BUFFALO #18 FLOOR MODEL #3MT DRILL PRESS – SOLD

MODEL . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
SPINDLE TAPER . . . . . . . . . . . . . . . . . . .# 3
SPINDLE TRAVEL . . . . . . . . . . . . . . . . .4-1/2″
DRILLING CAPACITY – STEEL. . . . .3/4″
                                                – CAST IRON. . .1″
THROAT DEPTH. . . . . . . . . . . . . . . . . . .9″
MAX. SPINDLE TO BASE . . . . . . . . . . .46-1/2″
MAX. SPINDLE TO TABLE . . . . . . . . .38-3/4″
SPINDLE SPEEDS (5). . . . . . . . . . . . . . .460 – 3,000 RPM
MAIN MOTOR . . . . . . . . . . . . . . . . . . . . .1 HP
ELECTRICS. . . . . . . . . . . . . . . . . . . . . . . .110/60/1 VOLT
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .32″ F-B X 16″ W X 70″ H
APPROX. WEIGHT . . . . . . . . . . . . . . . . .450 LBS
C/W:
- 14″ X 14″ TABLE;
- ON/OFF SWITCH;
- BELT GUARD;
- TABLE ADJUSTMENT – 30″ UP/DOWN;
- 1/8″ – 5/8″ METABO-FUTURO QUICK LOCK CHUCK;

BUFFALO #15 BENCH MODEL 1/2″ DRILL PRESS

MODEL. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SPINDLE CAPACITY . . . . . . . . . . . . . 1/2″ JACOBS CHUCK
SPINDLE TRAVEL. . . . . . . . . . . . . . . . 4-1/2″
DRILLING CAPACITY – STEEL . . . 1/2″
                                               - CAST IRON. . 5/8″
THROAT DEPTH . . . . . . . . . . . . . . . . . 7-1/2″
MAX. SPINDLE TO TABLE. . . . . . . . 10-1/2″
MAX. SPINDLE TO BASE. . . . . . . . . . 16″
SPINDLE SPEEDS (5). . . . . . . . . . . . . . 460 – 6,300 RPM
MAIN MOTOR . . . . . . . . . . . . . . . . . . . . 1/2 HP
ELECTRICS. . . . . . . . . . . . . . . . . . . . . . . 110/60/1 VOLT
DIMENSIONS . . . . . . . . . . . . . . . . . . . .  26″ F-B X 13″ W X 36″ H
APPROX. WEIGHT . . . . . . . . . . . . . . .  180 LBS
C/W:
- TABLE – 11″ X 11″;
- ON/OFF SWITCH;
- BELT GUARD;

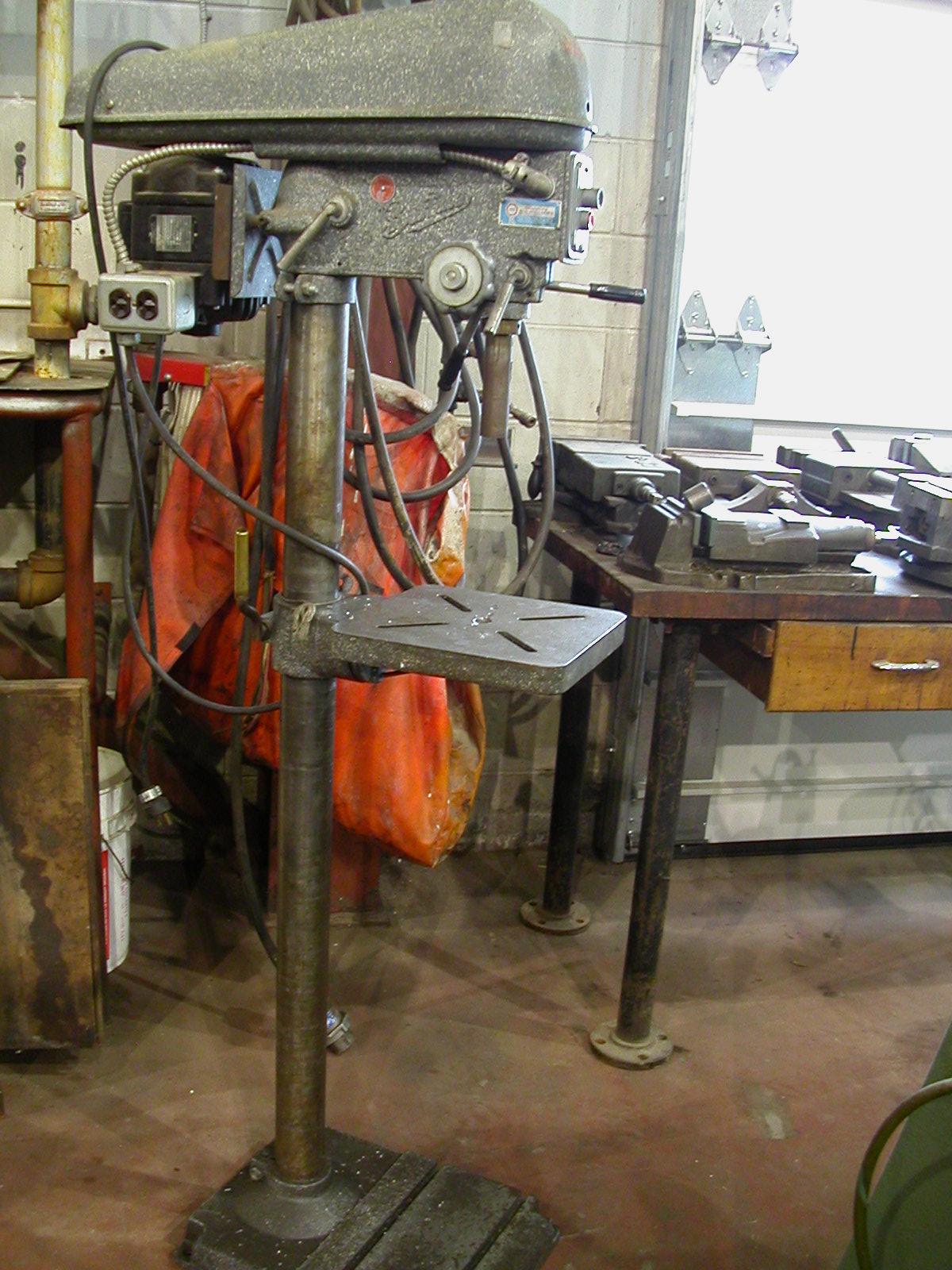

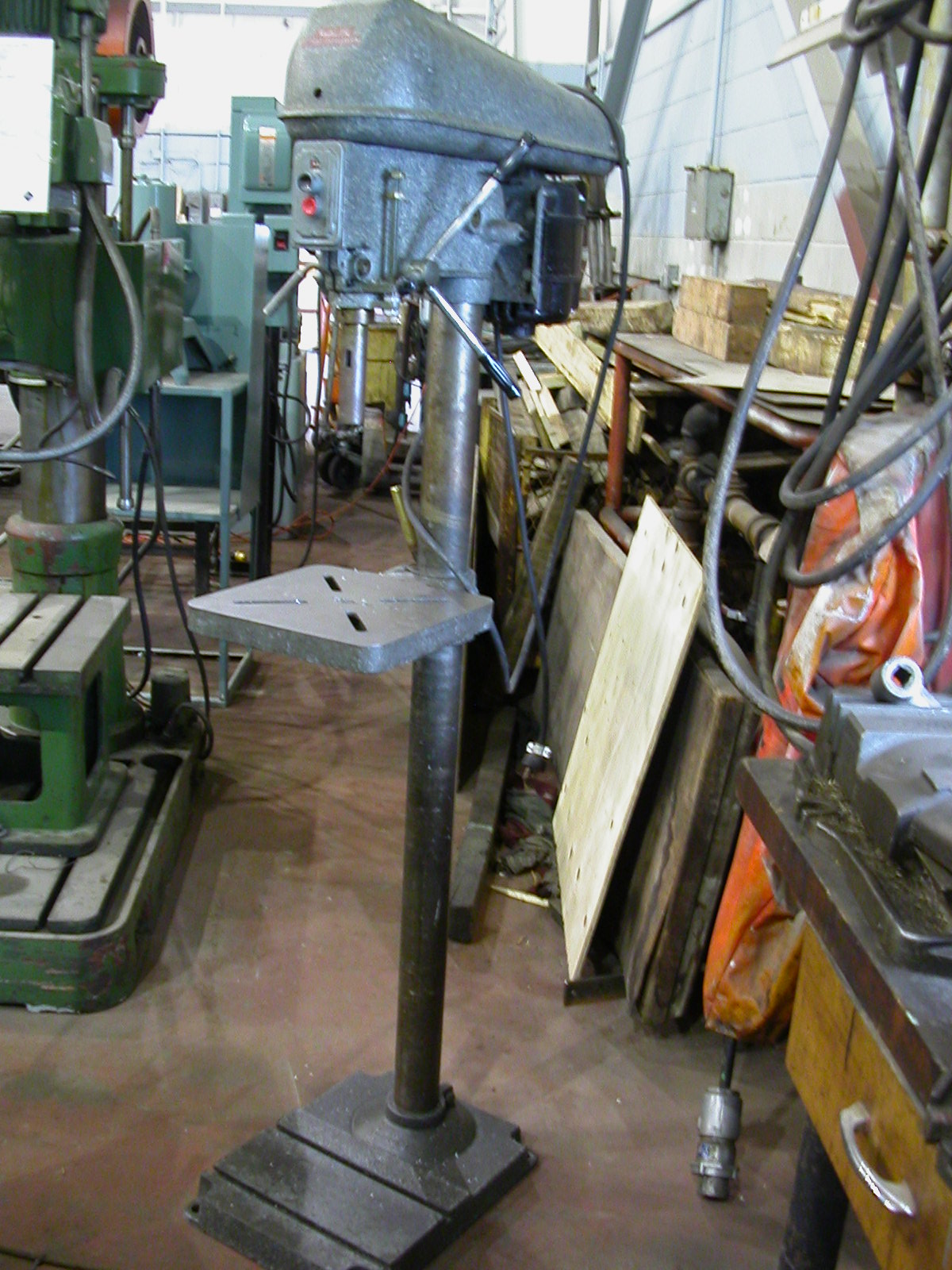

CANADIAN BUFFALO # 15 FLOOR MODEL DRILL PRESS – SOLD

MODEL. . . . . . . . . . . . . . . . . . . . .15
SPINDLE TAPER. . . . . . . . . . . . . .# 2 MT
SPINDLE TRAVEL. . . . . . . . . . . . .4-1/2″
DRILLING CAPACITY – STEEL . . .1/2″
                                  – CAST. . . .5/8″
THROAT DEPTH. . . . . . . . . . . . . .7-1/2″
MAX. DISTANCE SP. / TABLE . . .40-1/2″
MAX. DISTANCE SP./ BASE. . . . .46″
SPINDLE SPEEDS (BELT). . . . . . .5 FROM 500-6,000 RPM
SPINDLE MOTOR. . . . . . . . . . . . .1/2 HP
ELECTRICS. . . . . . . . . . . . . . . . .110/60/1 VOLT
DIMENSIONS . . . . . . . . . . . . . . .28″ FB X 13-1/2″ W X 67″ H
APPROX. WEIGHT. . . . . . . . . . . .190 LBS
C/W:
- 11″ X 11″ TABLE;
- ON/OFF SWITCH;
- BELT GUARD;
- 1/2″ CHUCK & ARBOR;
