GARY SHEET SLITTING LINE – 72″ WIDE X 10 GAUGE – SOLD
June 26, 2008 on 11:21 am | In Slitter, Slitting Line | Comments OffGARY AUTOMATIC SKEW FEED TABLE – MODEL 4500 – 72″
- SHEET WIDTHS. . . . . . . . . . . . . . . . .12″ TO 72″
- SHEET LENGTHS . . . . . . . . . . . . . . . .24″ TO 144″
- VARIABLE SHEET FEED SPEEDS . . . .100 – 300 FPM
- PASSLINE HEIGHT. . . . . . . . . . . . . . .42″
- ROLL DIAMETER . . . . . . . . . . . . . . . .2-5/8″
- MOTOR/ELECTRICS . . . . . . . . . . . . .5 HP @ 220/440/60/3 VOLT
- DIMENSIONS. . . . . . . . . . . . . . . . . . .92″ W X 154″ L X 44-1/2″ HGARY SHEET SLITTER – MODEL 4025 – 72″
- SLITTING CAPACITY. . . . . . . . . . . . .4 CUTS IN 72″ WIDE X 10 GAUGE MILD STEEL
- KNIFE ARBOR DIAMETER . . . . . . . . .8″
- KNIFE TYPE. . . . . . . . . . . . . . . . . . . .11″ OD X 2″ THICK (QUICKSET TYPE)
- MOTOR/ELECTRICS . . . . . . . . . . . . .15 HP @ 220/440/60/3 VOLT
- DIMENSIONS/WEIGHT . . . . . . . . . . .150″ W X 61″ D / 7,600 LBSGARY SHEET & STRIP CONVEYOR – MODEL 4200 – 72″
- BELT WIDTH . . . . . . . . . . . . . . . . . . .72″
- VARIABLE BELT SPEED . . . . . . . . . . .100 – 300 FPM
- MOTOR/ELECTRICS. . . . . . . . . . . . . .5 HP @ 220/440/60/3 VOLT
- DIMENSIONS . . . . . . . . . . . . . . . . . . .168″ L X 63″ W X 52″ HGARY AUTOMATIC SHEET & STRIP STACKER – MODEL 4100 – 72″
- SHEET WIDTHS. . . . . . . . . . . . . . . . . .4″ TO 72″
- SHEET LENGTHS . . . . . . . . . . . . . . . . .24″ TO 144″
- MAXIMUM STACK HEIGHT. . . . . . . . . .25″
- MAXIMUM TABLE LOAD. . . . . . . . . . . .20,000 LBS
- AIR REQUIREMENT. . . . . . . . . . . . . . .100 PSI
- MOTOR TO POWERED ROLLS . . . . . . .2 HP
- MAIN MOTOR/ELECTRICS . . . . . . . . .15 HP @ 220/440/60/3 VOLT GARY POWERED RUN-OUT TABLE – MODEL 4300 – 72″
- ROLL DIAMETER. . . . . . . . . . . . . . . . .3″
- MAXIMUM LOAD. . . . . . . . . . . . . . . . .20,000 LBS
- MOTOR/ELECTRICS. . . . . . . . . . . . . .1 HP @ 220/440/60/3 VOLT
- DIMENSIONS. . . . . . . . . . . . . . . . . . . 162″ L X 97″ W X 21-1/2″ H
C/W:
- KNIVES, RUBBERS, SPACERS;
- COMPLETE LAYOUT DRAWINGS & SCHEMATICS;
NOTE: ONLY RECENTLY TAKEN OUT OF SERVICE!
DO HAVE SOME GREAT PICTURES – E MAIL ME AND I WILL SEND THEM TO YOU!
FORADIA RADIAL ARM DRILL – 5 FT ARM – SOLD
June 26, 2008 on 6:23 am | In Drills, Single, Turret, Radial | Comments OffMODEL. . . . . . . . . . . . . . . . . . . . . GK 50-1500
LENGTH OF ARM . . . . . . . . . . . . . 59″
TRAVEL OF HEAD . . . . . . . . . . . . 48″
CAPACITY OF DRILL HEAD. . . . . # 4 MT
DRILL CAPACITY IN STEEL . . . . 2″
STROKE OF DRILL HEAD . . . . . . 9-3/4″
SPINDLE TO BASE. . . . . . . . . . . 22″ MIN – 51″ MAX.
COLUMN DIAMETER . . . . . . . . . 14″
DRILL SPEEDS (12) . . . . . . . . . 40 – 1,750 RPM
MAIN MOTOR (2 SPEED) . . . . . 2.5 HP & 4.5 HP
ELECTRICS. . . . . . . . . . . . . . . . 220/440/60/3 VOLT
WEIGHT . . . . . . . . . . . . . . . . . . 6,500 LBS
DIMENSIONS . . . . . . . . . . . . . . 99″ L X 32″ F-B X 100″ H
C/W:
- 70-1/4″ X 25-1/4″ T SLOTTED BASE;
- 3 BOX TABLES – 21-1/2″ X 19-1/2″, 21-1/2″ X 15-3/4″, 21-1/2″ X 21-1/2″;
- POWER RISE & FALL TO HEAD;
- MANUAL CLAMPING TO COLUMN;
- COOLANT PUMP IN BASE;
BURGMASTER TURRET DRILL & TAPPING MACHINE – MODEL 1D
June 19, 2008 on 7:46 am | In Drills, Single, Turret, Radial | Comments OffMODEL. . . . . . . . . . . . . . . . . . . . . . .1-D
SERIAL . . . . . . . . . . . . . . . . . . . . . .7379
NUMBER OF SPINDLES . . . . . . . . . .6
SPEEDS TO EACH SPINDLE. . . . . . .4 SPEEDS PER SPINDLE
SPINDLE SPEEDS . . . . . . . . . . . . . .275 – 4,010 RPM
DRILLING/TAPPING CAPACITY . . .1/2″ IN CAST IRON
SPINDLE TRAVEL . . . . . . . . . . . . . .6″
HEAD TRAVEL. . . . . . . . . . . . . . . . .12″
DIST. SPINDLE TO TABLE. . . . . . . .20″ MAXIMUM
THROAT DEPTH. . . . . . . . . . . . . . . .8-1/2″
TABLE SIZE . . . . . . . . . . . . . . . . . .17″ LR X 12″ FB
MOTOR SIZE. . . . . . . . . . . . . . . . . .0.5 & 1 HP (2 SPEED)
ELECTRICS. . . . . . . . . . . . . . . . . . .575/60/3 VOLT
DIMENSIONS . . . . . . . . . . . . . . . . .42″ LR X 36″ FB X 75″ H
APPROX. WEIGHT. . . . . . . . . . . . . .450 LBS
C/W:
- 5 X 5/8″ JACOBS DRILL CHUCKS;
- 1 X TAPMATIC HEAD – #6 – 1/2″ CAPACITY;
- COOLANT TROUGH AROUND TABLE;
- ON STAND;
- ON/OFF SWITCH;
BRAKE PRESS TOOLING – 143-3/4″x 90 DEGREE GOOSENECK DIE – SOLD
June 13, 2008 on 3:06 pm | In Tooling, Dies For Press Brakes | Comments OffTYPE. . . . . . . . . . . . . . . . . . . . . .M9A-3/4″
LENGTH . . . . . . . . . . . . . . . . . . .143-3/4″
HEIGHT. . . . . . . . . . . . . . . . . . . .3-3/4″
WIDTH . . . . . . . . . . . . . . . . . . . .2″
TANG ON TOP. . . . . . . . . . . . . . .1/2″ WIDE
KNIFE RADIUS. . . . . . . . . . . . . . 1/16″
CAPACITY. . . . . . . . . . . . . . . . . 10 GAUGE
THICKNESS OF DIE TIP . . . . . . .3/4″
- DIE ARE SEGMENTED: 1 X 2″, 1 X 4″, 1 X 8″
1 X 16″, 1 X 17-3/4″
1 X 32″, 1 X 64″;
BRAKE PRESS TOOLING – 148-3/4″ X 90 DEGREE BOTTOM VEE DIE – SOLD
June 13, 2008 on 2:44 pm | In Tooling, Dies For Press Brakes | Comments OffTYPE. . . . . . . . . . . . . . . . . . . . . . .M2
LENGTH . . . . . . . . . . . . . . . . . . . .148-3/4″
HEIGHT . . . . . . . . . . . . . . . . . . . .1-3/4″
WIDTH. . . . . . . . . . . . . . . . . . . . .1-1/2″
TANG ON BOTTOM. . . . . . . . . . . .1/2″ WIDE
WIDTH OF VEE . . . . . . . . . . . . . .7/8″
CAPACITY. . . . . . . . . . . . . . . . . .12 GAUGE
- COMES IN TWO PIECES – 1 X 129″ LONG & 1 X 19-3/4″ LONG;
BRAKE PRESS TOOLING – 10 FT X 30 DEGREE BOTTOM VEE DIE – NEW – SOLD
June 13, 2008 on 2:38 pm | In Tooling, Dies For Press Brakes | Comments OffTYPE. . . . . . . . . . . . . . . . . . . . . .20-1/2
LENGTH. . . . . . . . . . . . . . . . . . . .10 FT
HEIGHT. . . . . . . . . . . . . . . . . . . .1-3/4″
WIDTH . . . . . . . . . . . . . . . . . . . .1″
TANG IN BOTTOM. . . . . . . . . . . .1/2″
WIDTH OF VEE. . . . . . . . . . . . . .1/2″
CAPACITY . . . . . . . . . . . . . . . . .16 GAUGE
- NEW – NEVER USED IN MACHINE!
BRAKE PRESS TOOLING – 10 FT BOTTOM DIE HOLDER – NEW – SOLD
June 13, 2008 on 2:33 pm | In Tooling, Dies For Press Brakes | Comments OffLENGTH. . . . . . . . . . . . . . . . . . . . .10 FT
HEIGHT. . . . . . . . . . . . . . . . . . . . .3-1/2″
WIDTH . . . . . . . . . . . . . . . . . . . . .3″
SLOT IN TOP. . . . . . . . . . . . . . . . .5/8″ WIDE
C/W:
- FLAT BOTTOM;
- GRUB SCREWS TO HOLD-IN SINGLE VEE DIES;
- NEW – NEVER USED IN MACHINE!
BRAKE PRESS TOOLING – 10 FT X 30 DEGREE KNIFE DIE – NEW
June 13, 2008 on 2:26 pm | In Tooling, Dies For Press Brakes | Comments OffTYPE. . . . . . . . . . . . . . . . . . . . . . .# 21
LENGTH. . . . . . . . . . . . . . . . . . . . .10 FT
HEIGHT. . . . . . . . . . . . . . . . . . . . .3-3/4″
WIDTH . . . . . . . . . . . . . . . . . . . . .1″
TANG ON TOP. . . . . . . . . . . . . . . .1/2″
KNIFE RADIUS. . . . . . . . . . . . . . .1/32″
CAPACITY. . . . . . . . . . . . . . . . . . 22 – 16 GAUGE
- NEW- NEVER USED IN MACHINE!

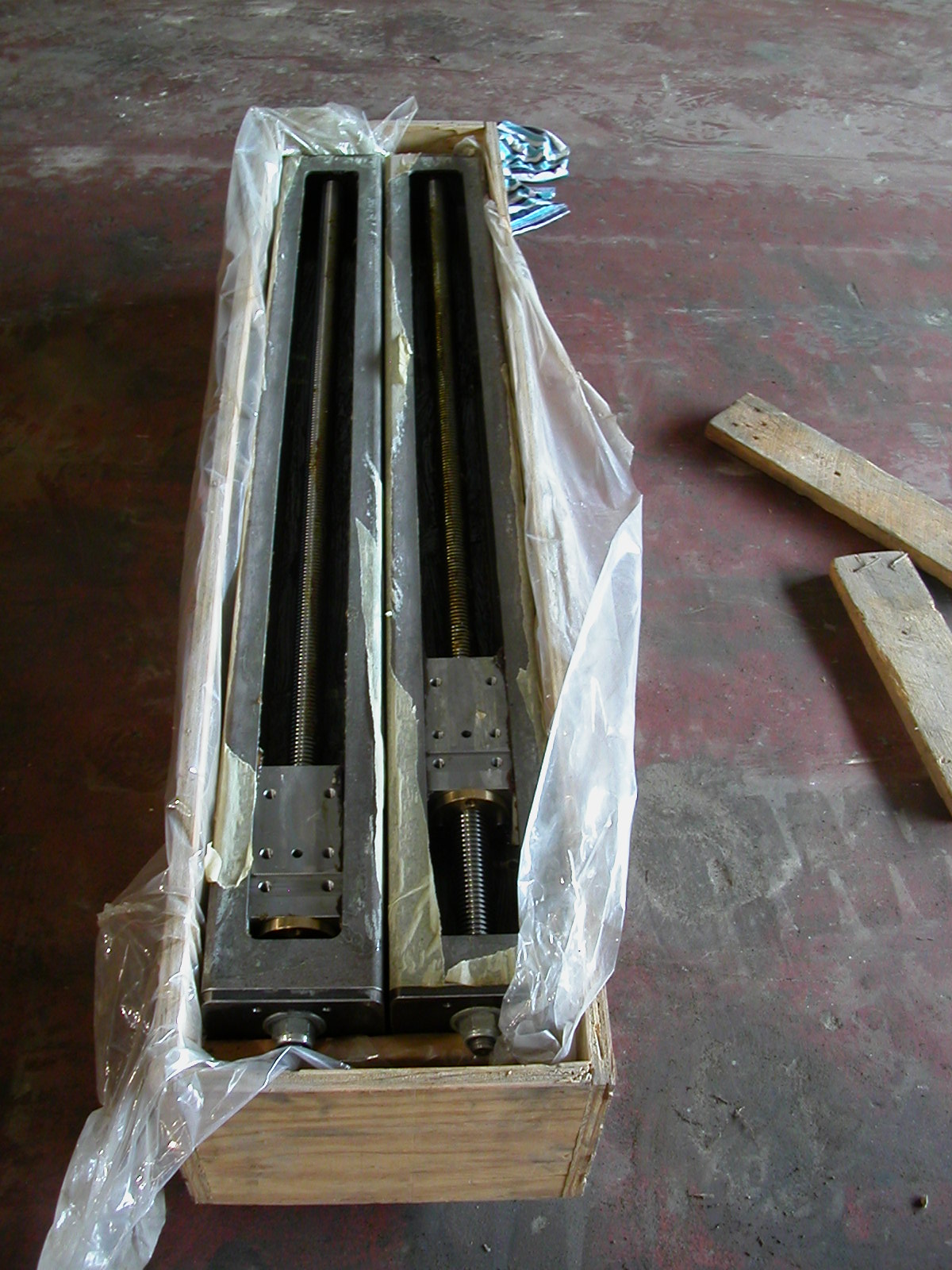

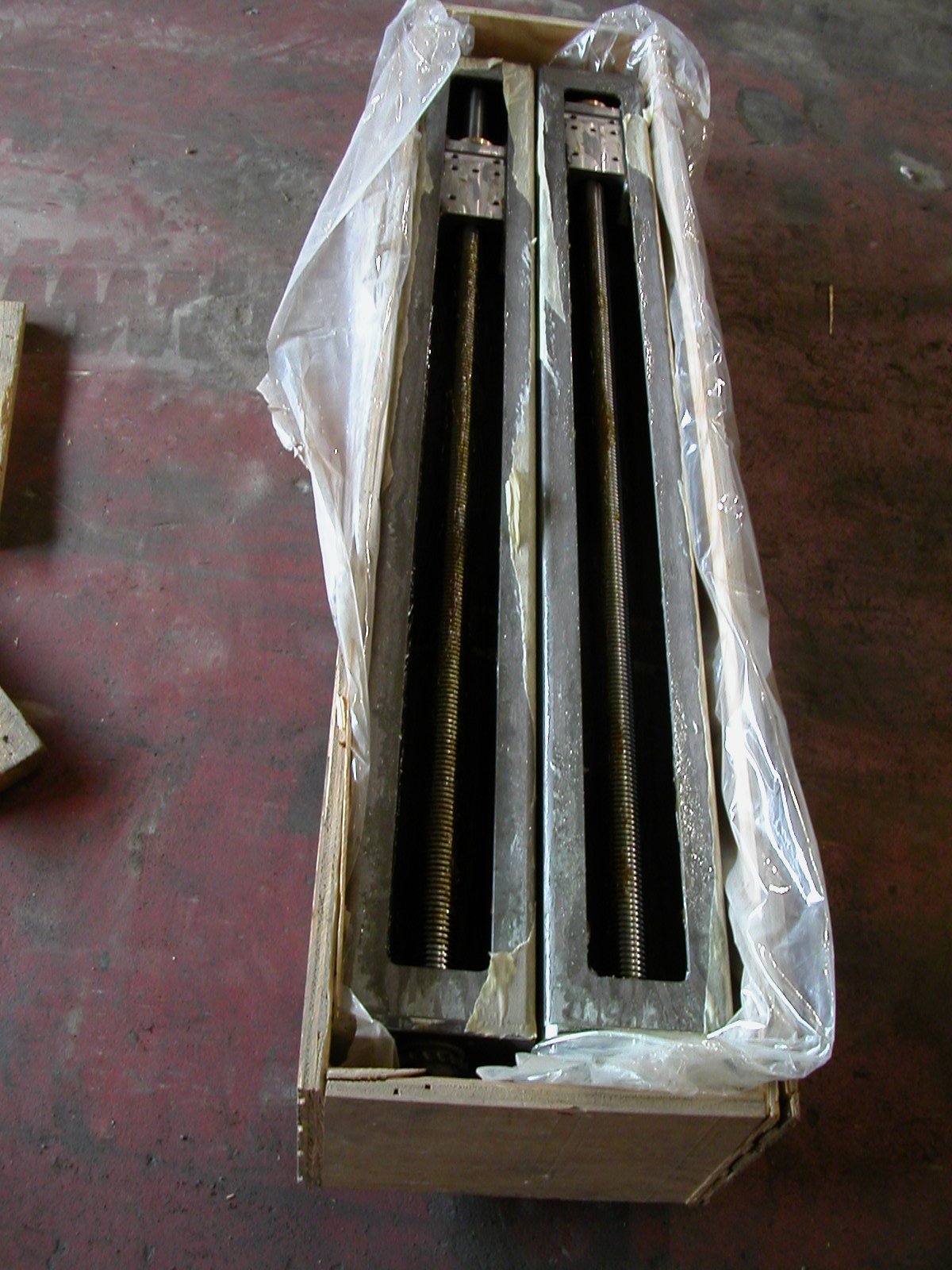

LVD SHEAR BACK GAUGE SCREWS & SUPPORTS – NEVER USED
June 4, 2008 on 11:02 am | In Shear, Hydraulic, Back Gauge Parts For LVD | Comments OffFOR MODELS. . . . . . . . . . . . . . . . .HST OR HSL 31/6 OR 41/6
CAPACITY OF SHEAR . . . . . . . . . .10 FT OR 12 FT X 1/4″
LENGTH OF SCREWS. . . . . . . . . . .48″
ACTUAL BACK GAUGE TRAVEL . . .40″
DIAMETER OF SCREW. . . . . . . . . .1-1/4″ OD
C/W:
- COMPLETE MOUNTING SUPPORT BRACKETS;

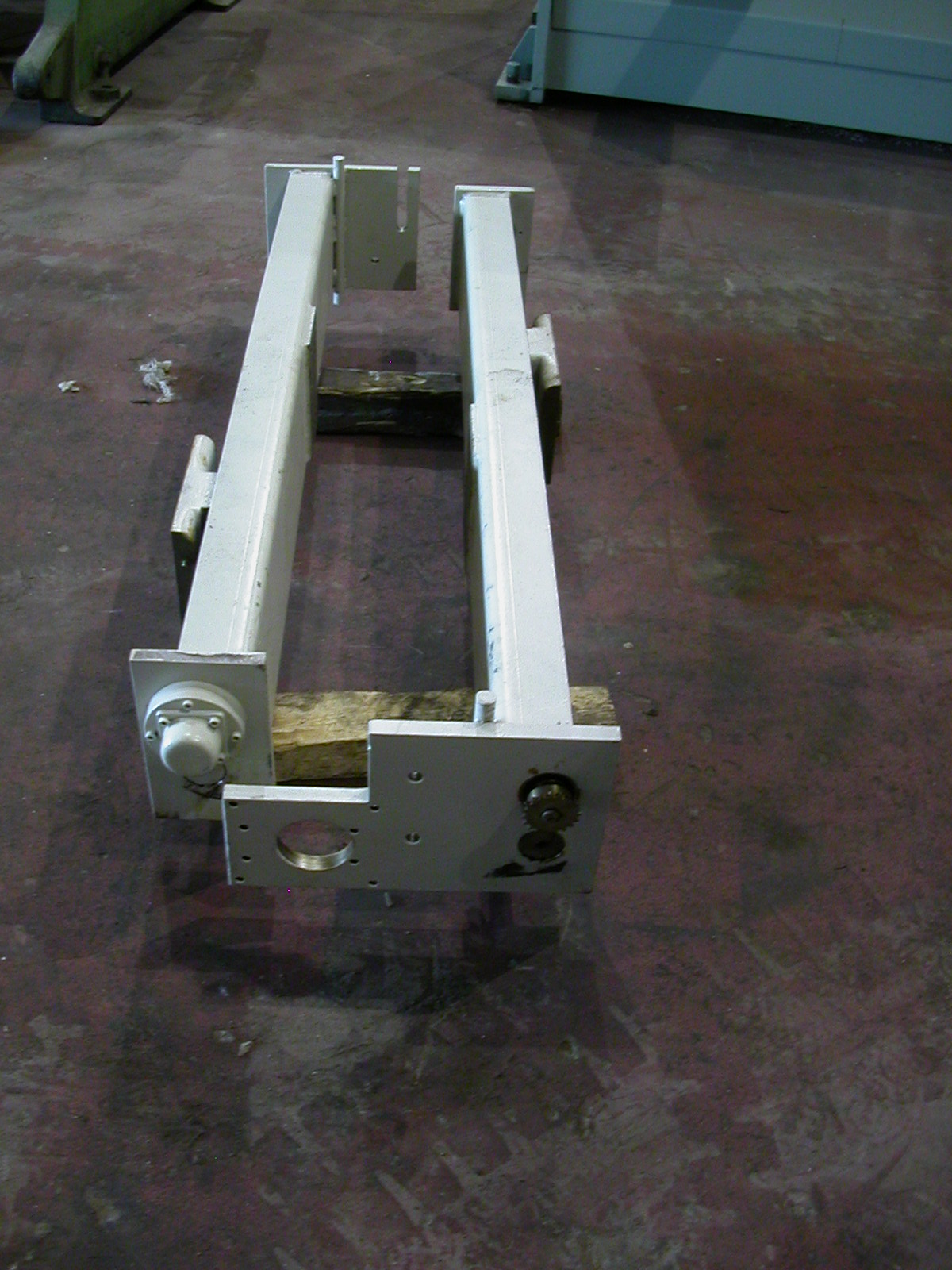

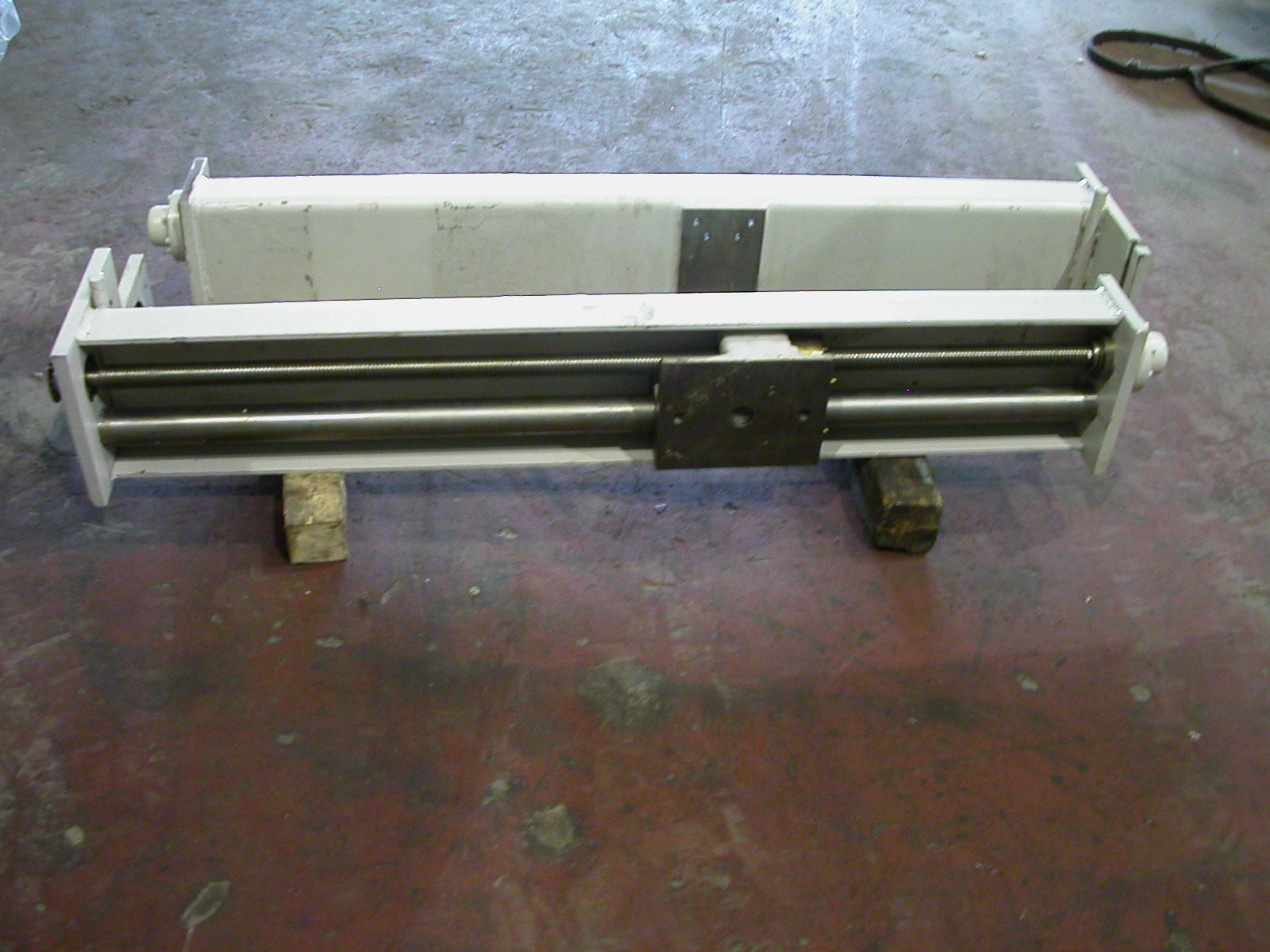

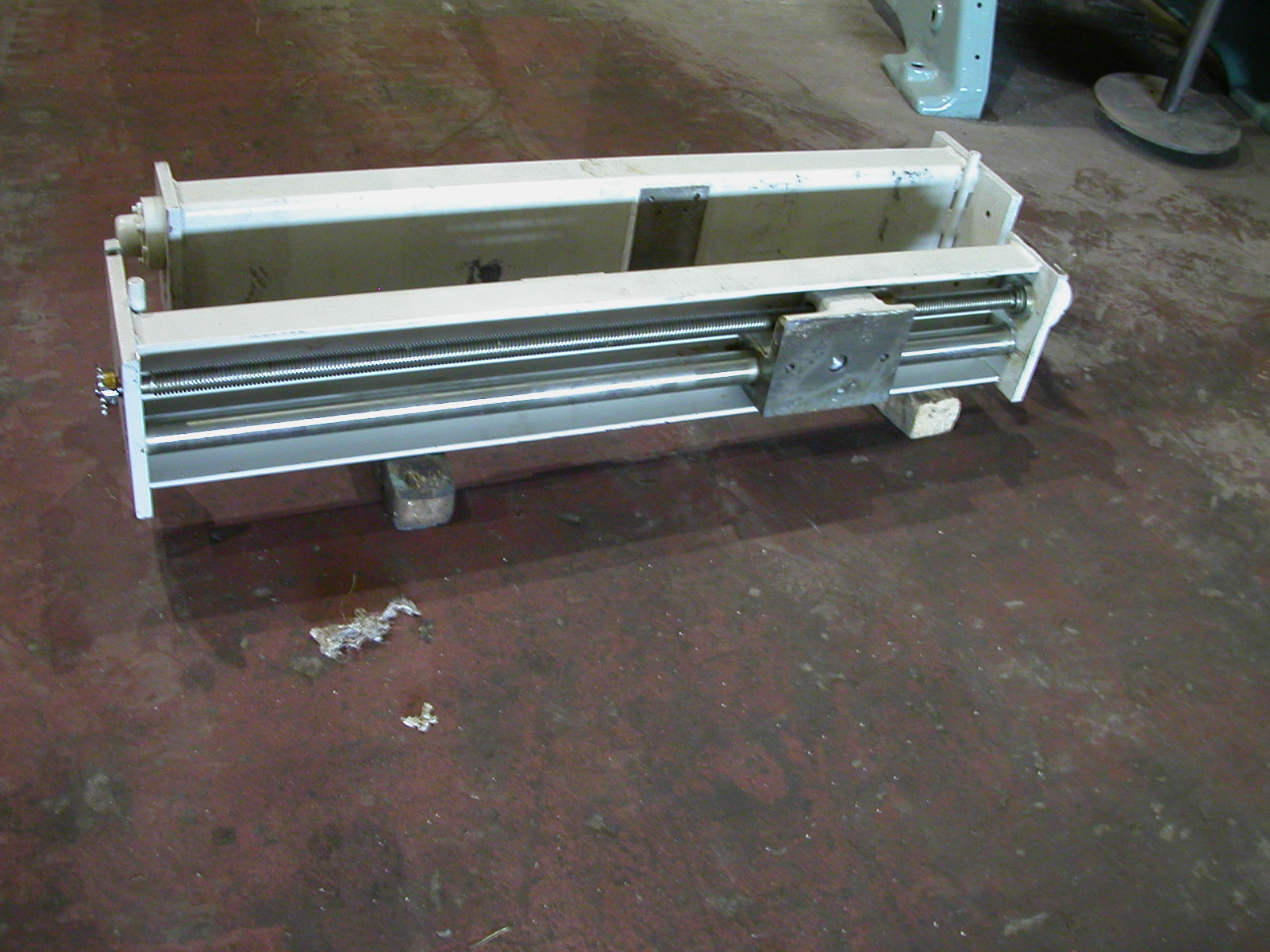

LVD SHEAR BACK GAUGE SCREWS & SUPPORTS – NEVER USED
June 4, 2008 on 10:55 am | In Shear, Hydraulic, Back Gauge Parts For LVD | Comments OffFOR MODEL. . . . . . . . . . . . . . . . .12 OH 50
CAPACITY. . . . . . . . . . . . . . . . . .12 FT X 1/2″
LENGTH OF SCREWS. . . . . . . . . .52″
BACK GAUGE ACTUAL TRAVEL. .40″
BACK GAUGE SCREW. . . . . . . . .1-1/4″ OD
C/W:
- SHAFT GUIDE ARMS;
- COMPLETE MOUNTING SUPPORT BRACKETS;
